K35 series

Specification：35*50 35*75 35*100 35*125 35*150 35*200 3550*50 3550*75 3550*100 3550*125

Description：Application: this product is suitable for welding and cutting, cnc machines, wood, stone, bridge and other machinery industry.

Prodcut Content：

K35 series cable drag chain

1.open type

Type	Inner(mm)	Outer(mm)	Bending radius(mm)	Pitch (mm)
3500.050. .0	50	77	100 125 150 175 200	56
3500.075. .0	75	102	100 125 150 175 200	56
3500.100. .0	100	127	100 125 150 175 200	56
3500.125. .0	125	152	100 125 150 175 200	56
3500.150. .0	150	177	100 125 150 175 200	56
3500.200. .0	200	227	100 125 150 175 200	56

2.closed type

Type	Inner(mm)	Outer(mm)	Bending radius(mm)	Pitch (mm)
3550.050. .0	50	88	100 125 150 175 200	56
3550.075. .0	75	103	100 125 150 175 200	56
3550.100. .0	100	125	100 125 150 175 200	56
3550.125. .0	125	150	100 125 150 175 200	56

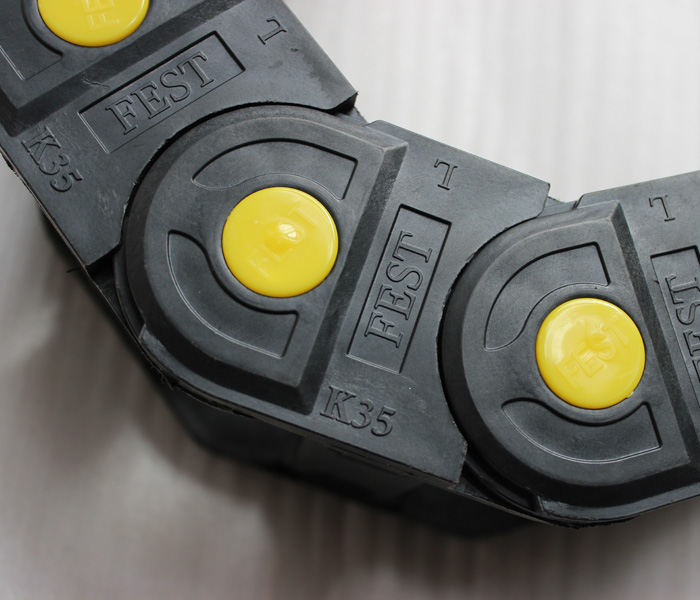

detailed picture
