K15 series

Specification：15*20 15*30 15*40 15*50

Description：With low noise and beautiful appreance, this mini type cable drag chain is made of PA 66 and can stand wear and tear.

Prodcut Content：

Application: electronic equipment, machine hand and other auto machines.

K15.20 plastic cable drag chain

Type	Inner height*Inner width(mm)	Outer height*outer width(mm)	Bending radius(mm)	Pitch (mm)
15.20.	15*20	20*28	28,38,48	22
15.30.	15*30	20*38	28,38,48	22
15.40.	15*40	20*48	28,38,48	22
15.50.	15*50	20*58	28,38,48	22

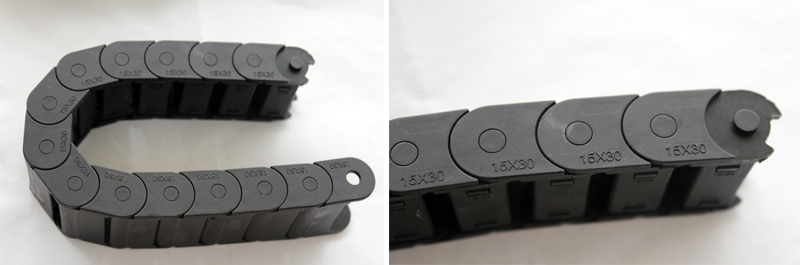

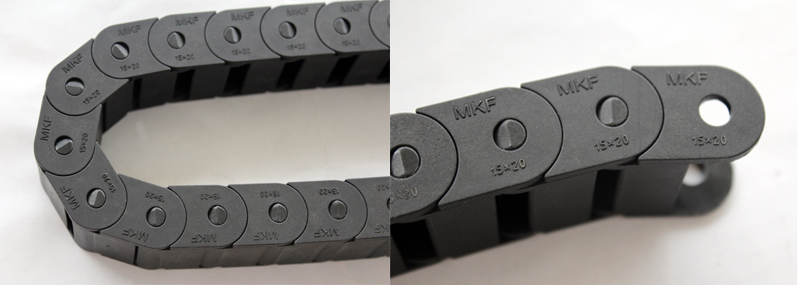

Detailed picture
